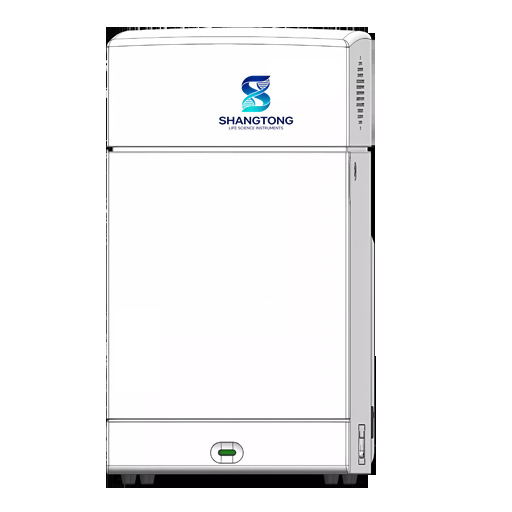

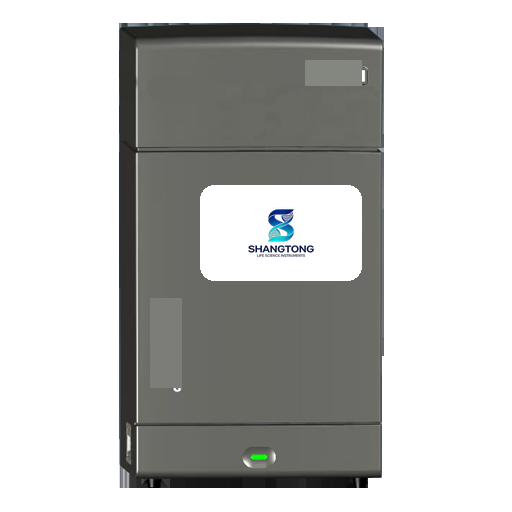

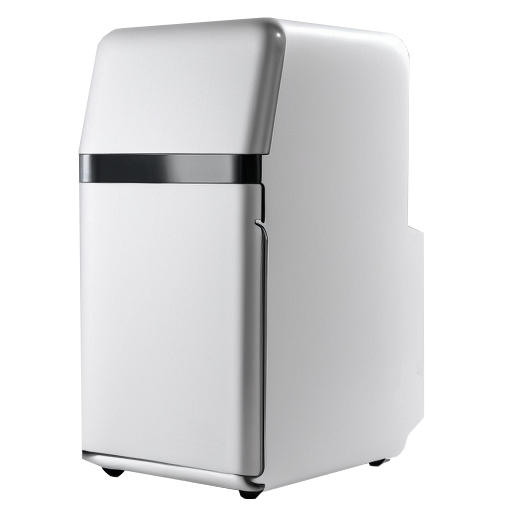

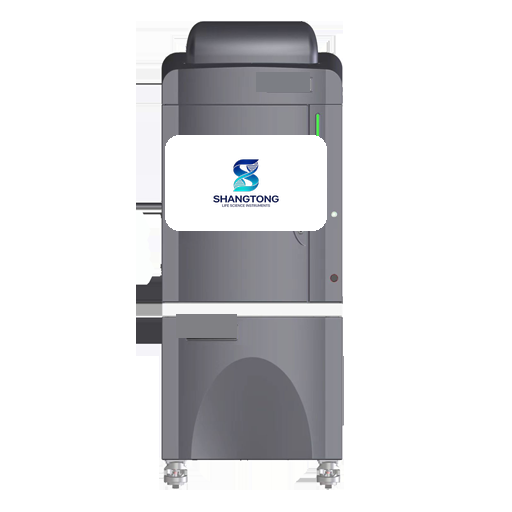

LumiFluor AVIS
In Vivo Animal Imaging System
High-sensitivity bioluminescence, fluorescence and chemiluminescence imaging for living small animals — powered by a deep-cooled camera, ring LED excitation and an intelligent gas anesthesia system.
Key Features
Deep-Cooled Imaging
Research-grade camera cooled to -70°C, 7.5 MP output, ≥80% quantum efficiency at 600 nm, and a fast F0.8 lens to capture the faintest in vivo signals.
Multi-Mode Detection
Chemiluminescence, in vivo luminescence and fluorescence — supporting Western/Southern/Northern/Dot blots, luciferase reporters and fluorescent probes.
Precision Optics
Top-mounted ring LED excitation with 22 positions, 18-position emission filter wheel with 8 filters, fully automatic software-controlled switching.
Intelligent Software
Auto-recognition, focus preview, multi-image comparison, pseudo-colour, B-STEP & binning, 3D peak display, ROI selection and auto-exposure.
Core Specifications
| Camera | Deep-cooled research-grade camera |
|---|---|
| Lens | Minimum F value 0.80 |
| Cooling Temperature | -70 °C |
| Effective Pixels | 7.5 million |
| Quantum Efficiency | ≥80% @ 600 nm |
| Pixel Depth | 16 bit |
| Imaging Area | 20 cm × 20 cm |
| Mouse Capacity | 5 mice |
| Temperature-controlled Stage | 20 °C – 40 °C |
| Excitation Source | 22 positions, 22 LED sources included |
| Filter Wheel | 18 positions, 8 emission filters included |
| Dark Box | Fully sealed, side-opening, dual magnetic design |
Product Gallery
Applications
Oncology Research
Non-invasive in vivo imaging of tumour growth, invasion and metastasis, with precise quantification of tumour volume and signal intensity.
Drug Development
Track the biodistribution, targeting, metabolism and clearance of fluorescent or radionuclide-labelled drugs in vivo.
Nanomaterial & Translational Medicine
Long-term in vivo tracing of nanomaterials and labelled cells to support translational research.
